Tinned Wire Core Cable for Larger Buoyancy on Water Floating and Efficiency
Advanced cable solutions with thermoset insulation designed for optimal buoyancy and performance in aquatic environments.
Product Features
- Special flexible sheath material with customizable colors - withstands over 6 million bending cycles without breakage
- Excellent flexibility, wear resistance, oil resistance, acid and alkali resistance, and tensile strength
- Superior waterproof and anti-aging properties for long-lasting performance
- Specific gravity designed to be infinitely close to water, enabling reliable flotation on water surfaces
- Low viscosity appearance for smooth handling and installation
Buoyancy Cable Specifications
| Product Name |
Waterproof ROV Zero Buoyant Floating Cable For Under Water Robot |
| Specification |
2-60 core |
| Cable Diameter |
0.05-50mm² |
| Conductor Material |
Bare copper/tinned copper (as client's required) |
| Conductor Type |
Stranded |
| Insulation Material |
HDPE/FEP/PP (as client's required) |
| Jacket Material |
TPU+FOAMED (as client's required) |
| Temperature Range |
-40℃ ~ +80℃ |
| Rated Voltage |
300V |
| Bend Radius |
Winding time:/ Fixed time:5x outer diameter |
| Application |
Underwater robots, submersibles and other electronic equipment |
| Color |
Can be customized |
| Brand |
LINKE |
Cross Section (mm²) |
0.01-500mm² |
| Wire Gauge (AWG) |
[e.g., 24AWG, 28AWG] |
Conductor |
Tinned Copper /bare copper, based on client's requirements |
| Insulation material |
PVC/TPU/Silicone rubber/PE/PP/XLPE/Nylon/other |
Jacket Material |
[PVC/PU/Rubber/Braid/etc.] |
| Certifications |
RoHS/REACH/UL/CE/IP68/etc |
Custom Length |
[e.g., 1m, 3ft, 5m ±5% tolerance] |
| Cable Type |
[Medical/Power/Audio/Coaxial/Electrical/Automotive/Energy storage//etc.] |
Shielding |
[Shielded/Unshielded/Braid Shield] |
| Impedance |
[e.g., 75Ω (for coaxial cables)] |
Printing/Logo |
[Text/Label/Logo, max. 20 characters] |
| Bend Radius |
[e.g., ≥5* cable diameter] |
Current Rating |
[e.g., 5A] |
| Voltage Rating |
[e.g., 30V AC/DC] |
Connector Material |
[Gold-plated/Nickel-plated/Brass/etc.] |
| Connectors |
[e.g., USB Type-C, 3.5mm Jack, RJ45] |
Jacket |
XLPE or PE or PVC RUBBER |
| Delivery Time |
7-14 days after confirming the order |
Colors |
[Black/White/Red/Custom Pantone/etc.] |
| temperature |
Minus-70℃to 350℃(-70℃ ~ 350℃) |
Package |
Roll/box/plate/Custom |
| Supporting Services |
custom cable, end to end solutions, including precise cutting, crimping and installation of lugs (specify material,e.g.,copper/nickel plated) |
Cable Types and Ratings
Extruded PVC Insulated Single, rated 105ºC, 1000V, Class I, Group A, B, or AB, FT1 and/or FT2.
Extruded PVC Non-integral Jacketed Cable, rated 105ºC, 1000V, Class I, Class or Class I/II, Group A, B, or AB, FT1 and/or FT2.
Extruded TPU Non-integral Jacketed Cable, rated 80ºC, 300V, Class I, Class or Class I/II, Group A, B, or AB, FT1 and/or FT2.

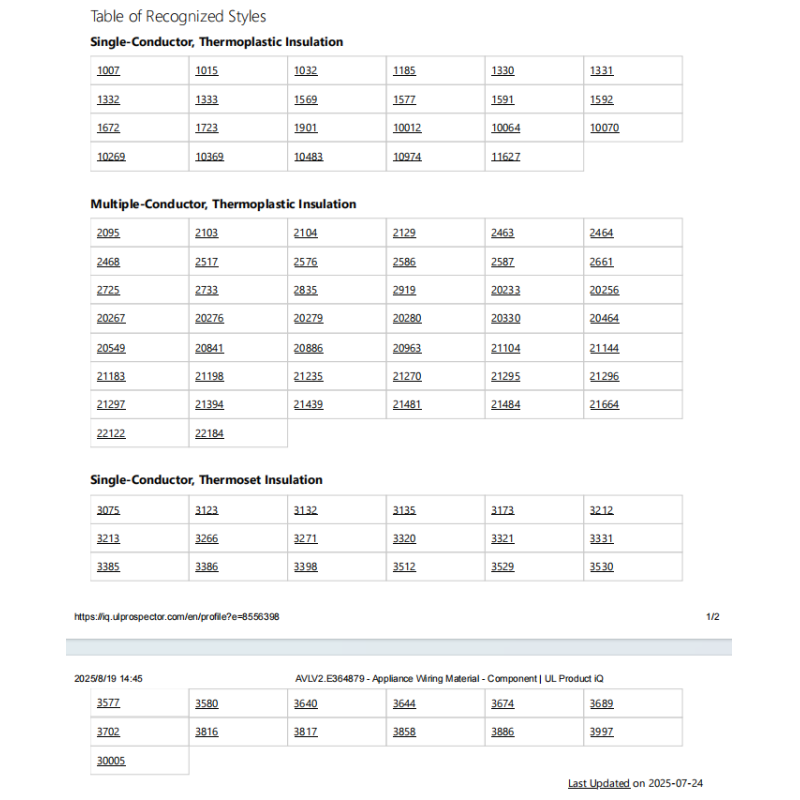

Quality Certifications
Our products meet the following international standards:
UL1007, UL1185, UL1672, UL10070, UL10483, UL1015, UL1569, UL10012, UL10269 (Single conductor, thermoplastic insulation)
UL2095, UL2129, UL2468, UL2586, UL2725, UL20233, UL20280, UL20963, UL2103, UL2463, UL2517, UL2587
UL2835, UL20276, UL20549, UL21198, 2104, UL2464, UL2576, UL2661, UL2919, UL20279, UL20886, UL21664
ISO9001 and ISO13485, TS16949
CNR - Appliance Wiring Material
Extruded PVC Insulated Single, rated 105ºC, 1000V, Class I, Group A, B, or AB, FT1 and/or FT2
Extruded PVC Non-integral Jacketed Cable, rated 105°C, 1000V, Class I, Class or Class I/II, Group A, B, or AB, FT1 and/or FT2
Extruded TPU Non-integral Jacketed Cable, rated 80°C, 300V, Class I, Class or Class I/II, Group A, B, or AB, FT1 and/or FT2
Frequently Asked Questions
1. Are you a manufacturer or trading company?
We are a professional manufacturer. We can control your order from the first beginning to the last. Welcome to visit us. We'll pick you up in Shenzhen.
2. How can I get a sample to test your quality?
The samples are free for you. New clients are expected to pay for the courier cost.
3. What's your Minimum Order Quantity?
Normally 100m. However, the cable is very heavy. You'd better order a suitable quantity to avoid the high freight. Sea transportation is the best option.
4. Can I get a discount?
It depends on your quantity. We can make a discount and afford the freight. Please kindly contact us.
5. Does your company accept OEM production?
Yes, we can print your company name, and we even custom the quality card to promote your company.
